UMS new product CHA2353-99F: 46-52GHz Low Noise Amplifier with Adjustable Gain Control
UMS new product CHA2353-99F: 46-52GHz Low Noise Amplifier with Adjustable Gain Control
Product Description:

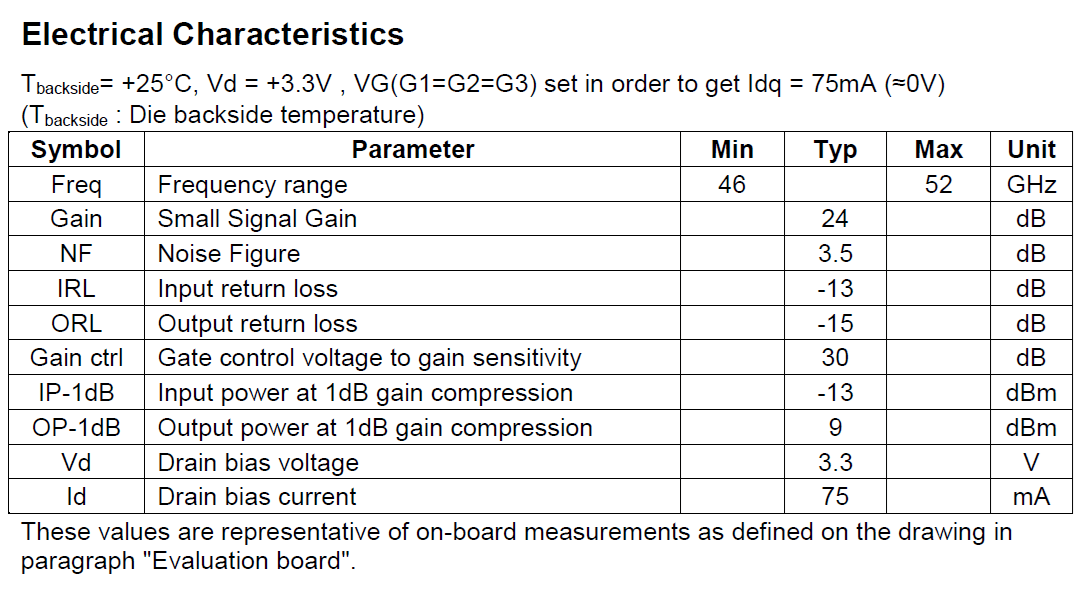

The CHA2353-99F is a three stage monolithic Low Noise Amplifier, producing 24dB linear gain with 30dB Adjustable Gain Control (AGC) and 3.5dB Noise Figure in the frequency band 46-52GHz. It includes ESD protections on each RF access and DC pads.
This amplifier is designed for a wide range of applications, from Commercial to Space communication systems.
It is manufactured with a pHEMT process, successfully evaluated for Space and is available in bare die.
Access to the datasheet:
Access datasheet for this new product through internet product page or directly through this link.
We remain at your disposal for any additional information.
